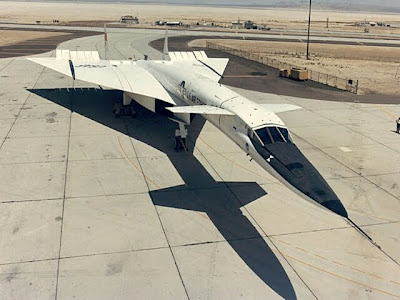

North American Aviation XB-70 Valkyrie engines

This image from Up-Ship.com

The Valkyrie is one of the most insane jets ever made, in some ways more extreme than the SR-71. It was expensive, huge, dangerous to fly, and ultimately not particularly useful as a weapon because of ICBMs. But those are just minor reasons in the face of this:

Stats:

* Length: 189 ft 0 in (57.6 m)
* Wingspan: 105 ft 0 in (32 m)
* Height: 30 ft 0 in (9.1 m)
* Wing area: 6,297 ft² (585 m²)
* Empty weight: 128,000 lb (58,100 kg)
* Loaded weight: 534,700 lb (242,500 kg)
* Max takeoff weight: 550,000 lb (250,000 kg)
* Powerplant: 6 × General Electric YJ93-GE-3 afterburning turbojet
* Dry thrust: 19,900 lbf (84 kN) each
* Thrust with afterburner: 28,800 lbf (128 kN) each
* Internal fuel capacity: 300,000 lb (136,100 kg) or 46,745 US gallons (177,000 L)

Performance

* Maximum speed: Mach 3.1 (2,056 mph, 3,309 km/h)
* Cruise speed: Mach 3.0 (2,000 mph, 3,200 km/h)
* Range: 3,725 nmi (4,288 mi, 6,900 km) on combat mission
* Service ceiling: 77,350 ft (23,600 m)

More XB-70 images:
